Steering Developments

SD mountain trike

SD mountain trike

Price starting from:

£12,450.00 GBP
£12,450.00 GBP
Sale Sold out
With VAT Relief: £12,450.00
Including VAT: £14,940.00

Are you exempt from paying VAT?

Please ensure you are eligible for VAT exemption - if you are unsure click here for further details.

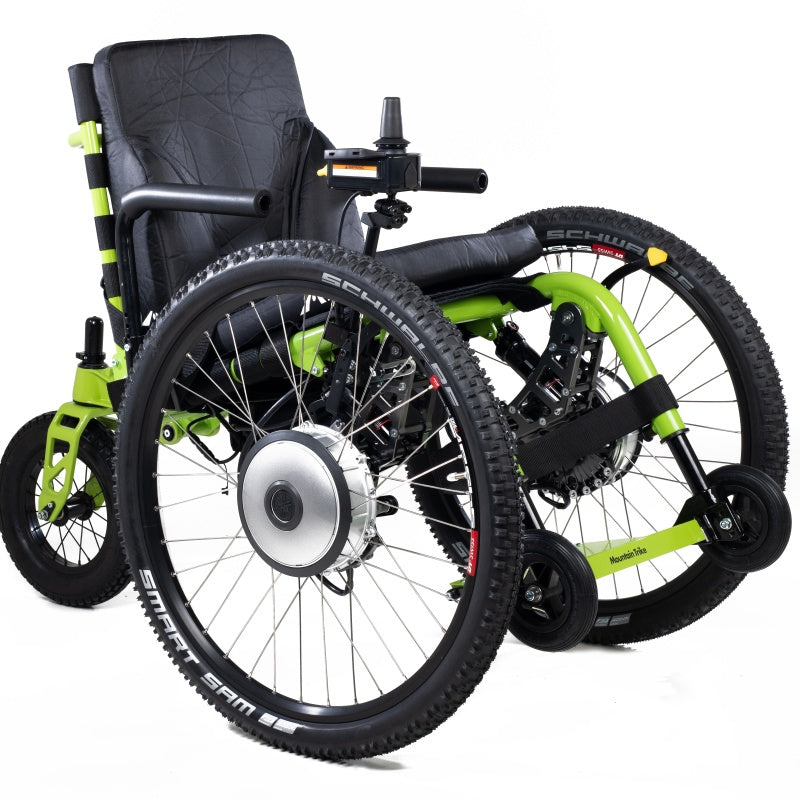

The SDMotion Trike, fully electric powered, joystick controlled, off-road all terrain wheelchair. Combines the quality and all terrain durability of the Mountain Trike wheelchair and the proven SDMotion power system.

  1. FRAME - Aluminium Frame
  2. SUSPENSION - Rock shox air shocks
  3. WHEEL SIZE - Default: 26" Optional: 24"
  4. SUPPORT - Moulded comfort cushions, tension adjustable support straps
  5. FOOTREST - Adjustable height footrest (maximum 41 cm to 48 cm) Flips up for transfer
  6. LENGTH (fully assembled) - 130 cm
  7. OVERALL WIDTH / BACK HEIGHT - 73cm / 37cm (also adjustable forwards and backwards)
  8. OVERALL HEIGHT - 88.5cm from floor to top of backrest. 102cm from floor to top of push handle
  9. SEAT WIDTH - 43cm (17 inches)
  10. SEAT HEIGHT FROM GROUND - 46.5 cm
  11. WEIGTH (WITHOUT BATTERY) - 37 kg

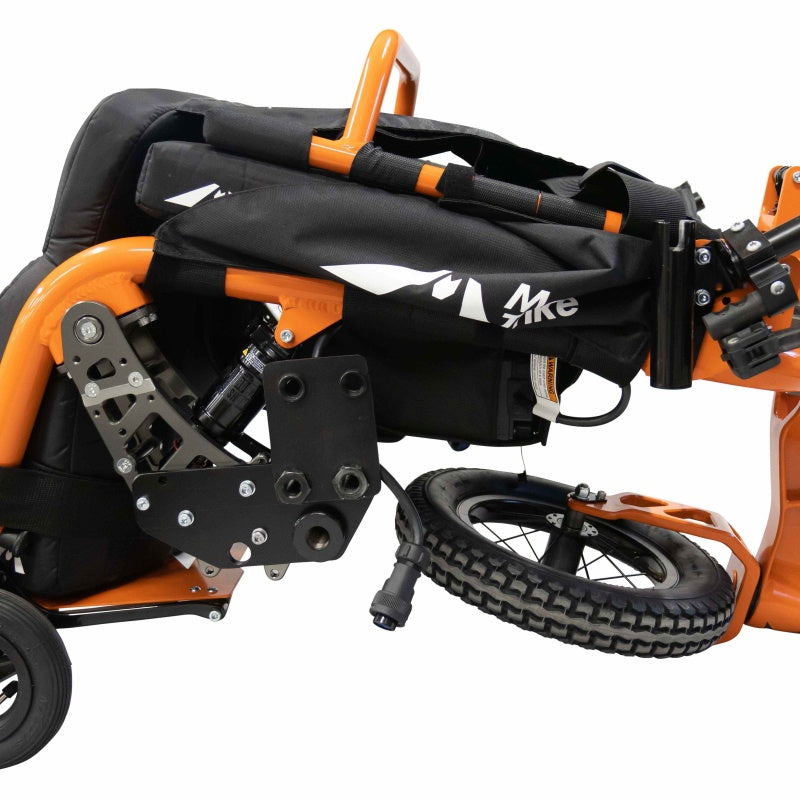

  1. FOLDED DIMENSIONS -  87cm x 61cm x 58cm
  2. STEERING - User control. Joystick operation
  3. MOTOR - 30 minutes rated output: 24V 120W X2
  4. MANUAL/ELECTRIC MODE - Switched by hand
  5. TRAVEL SPEED - Forward: 1.7 - 6km/h; Reverse: 1 - 3 km/h
  6. MAXIMUM USER WEIGHT - 100 kg

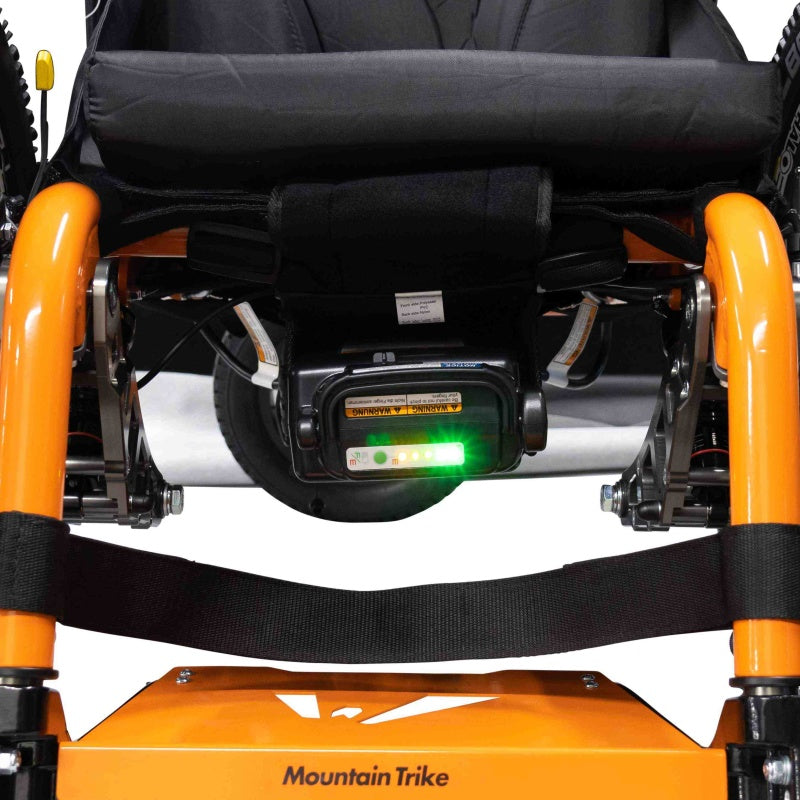

  7. BATTERY - Default: Lithium-ion: Weight 3.6kg. 25V x 11.8AH; Optional: Nickel-Metal Hydride: Weight 2.9kg. 24V x 6.7AH
  8. BATTERY CHARGER - Power supply: AC100V to 240V, 50/60HZ Fully automatic charging. Approx charging time: Li-ion 4.5 hours, Ni-MH 2-3 hours
  9. ELECTRIC POWER RANGE - Lithium-ion battery: 30km / 18 miles; Nickel-metal hydride battery: 16km / 10 miles
  10. TRANSPORT - Folds to create a cube shape for easy transportation. Not crash tested
